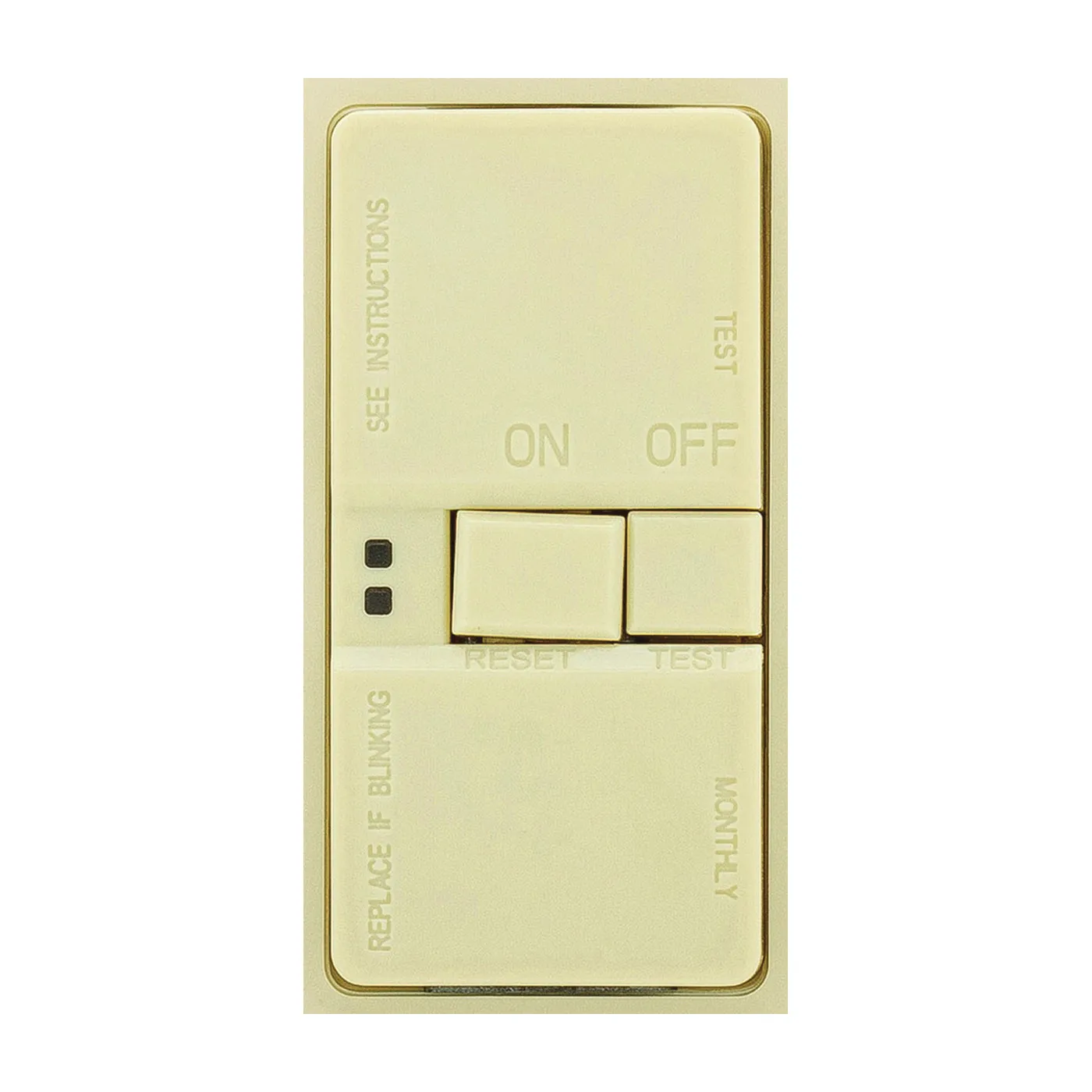

Blank Face GFCI is UL listed, fully compliant with all latest UL 943 (4th edition) Class A GFCI, UL 498 requirements and UL 508 for motor control switch horsepower rating, including the latest self testing requirements. GFCI lock-out function protects from miswired line-load connections and GFCI circuitry damage. Compact design provides maximum wiring room in "grounded box" applications. Device and wallplate mounting screws are captive, speeding installation time. Includes standard size unbreakable wallplate.

Product Details

Manufacturer:

Manufacturer's Part Number: SGFD20V

Show me more

Product Features

• Line-load miswiring protection

• Tri-combo head terminal and mounting screws

• Longer, wider strap provides 40% more contact area to wallboard

• Performs periodic self-tests to ensure integrity of GFCI protection

• Line side terminals are backed out and staked for fast installation

• Test and reset buttons are color matched to provide great aesthetics

• Rugged construction provides unsurpassed chemical and impact resistance

• Horizontal test/reset button alignment provides larger unobstructed area

• Visual trip indicator light gives quick notification of a tripped or "end of life" condition

• Ground termination with back wire clamp provides secure wiring and reduces installation time

• When downstream receptacles are wired from load side, a 20 A feed-through rating offers full protection

• Tapered back wire openings handle multiple wire sizes and types for applications up to #10 AWG solid or stranded wire

• Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
